小體積石英晶體廣泛用于測試設備ABM8-24.000MHZ-D2-T,德克薩斯州奧斯汀- Abracon是無源組件的領導者，很高興發布了新產品ABM8，產品是為了優化性能而設計的,這些石英晶體產品具有一流的性能，提供高效率和低損耗，并滿足行業對快速/穩定數據傳輸?shù)男枨螅覀兊男陆鉀Q方案涵蓋了廣泛的應用，包括物聯網、M2M、安全汽車接入等領域，Abracon繼續擴展其射頻和天線組合的功能。超寬帶天線介紹包括所有相對頻段，以服務于不同的市場。

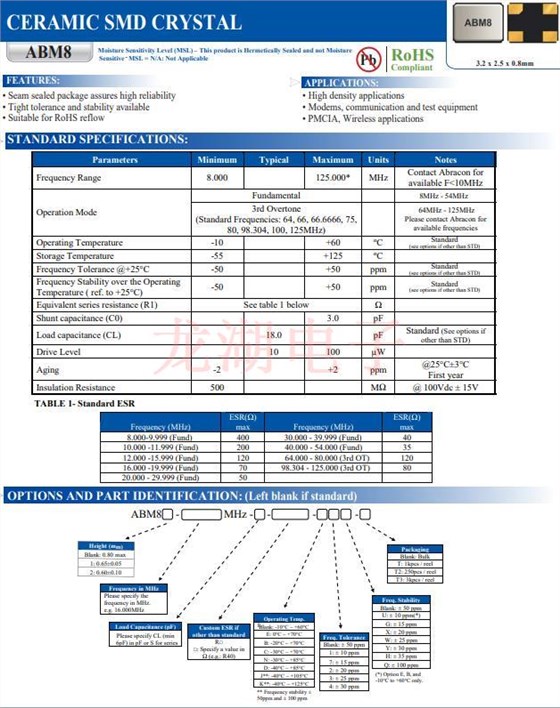

編碼ABM8-24.000MHZ-D2-T，型號ABM8，SMD晶振，石英晶體諧振器，石英晶體，尺寸為3225mm,頻率為24.0000MHZ，負載電容為18PF，精度為±20ppm ，工作溫度-40°C~+85°C，腳位為4-SMD，產品特點:接縫密封包裝，確保高可靠性，公差小，穩定性好，適用于RoHS回流。應用程序:高密度應用，調制解調器，通信和測試設備，PMCIA，無線應用.

Manufacturer Part Number原廠編碼	Manufacturer廠家	Series型號	Type 系列	Frequency頻率
ABLS2-3.6864MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	3.6864MHz
ABLS2-3.579545MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	3.579545MHz
ABLS2-13.000MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	13MHz
ABLS2-22.1184MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	22.1184MHz
ABLS2-6.144MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	6.144MHz
ABLS2-7.3728MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	7.3728MHz
ABLS2-8.192MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	8.192MHz
ABLS2-20.000MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	20MHz
ABLS2-26.000MHZ-D4YF-T	Abracon晶振	ABLS2	MHz Crystal	26MHz
ABLS2-29.4912MHZ-D4YF-T	Abracon晶振	ABLS2	MHz Crystal	29.4912MHz
ABLS2-10.000MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	10MHz
ABLS2-11.0592MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	11.0592MHz
ABLS2-4.096MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	4.096MHz
ABLS2-16.000MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	16MHz
ABLS2-16.384MHZ-D4Y-T	Abracon晶振	ABLS2	MHz Crystal	16.384MHz
ABLS2-36.000MHZ-D4YF-T	Abracon晶振	ABLS2	MHz Crystal	36MHz
AB26TRB-32.768KHZ-T	Abracon晶振	AB26TRB	kHz Crystal (Tuning Fork)	32.768kHz
ABLS-4.9152MHZ-B2-T	Abracon晶振	ABLS	MHz Crystal	4.9152MHz
ABM8G-12.000MHZ-4Y-T3	Abracon晶振	ABM8G	MHz Crystal	12MHz
ABLS-24.000MHZ-B2-T	Abracon晶振	ABLS	MHz Crystal	24MHz
ABLS-11.0592MHZ-B2-T	Abracon晶振	ABLS	MHz Crystal	11.0592MHz
ABLS-3.6864MHZ-B2-T	Abracon晶振	ABLS	MHz Crystal	3.6864MHz
ABLS-14.7456MHZ-B2-T	Abracon晶振	ABLS	MHz Crystal	14.7456MHz
ABLS-14.31818MHZ-B2-T	Abracon晶振	ABLS	MHz Crystal	14.31818MHz
ABLS-27.000MHZ-B2F-T	Abracon石英晶體	ABLS	MHz Crystal	27MHz
ABLS-22.1184MHZ-B2-T	Abracon晶振	ABLS	MHz Crystal	22.1184MHz
ABLS-24.576MHZ-B2F-T	Abracon晶振	ABLS	MHz Crystal	24.576MHz
ABLS-8.192MHZ-B2-T	Abracon晶振	ABLS	MHz Crystal	8.192MHz
ABM8-24.000MHZ-D2-T	Abracon晶振	ABM8	MHz Crystal	24MHz
ABM10-167-12.000MHZ-T3	Abracon晶振	ABM10	MHz Crystal	12MHz
ABM10-166-12.000MHZ-T3	Abracon晶振	ABM10	MHz Crystal	12MHz
ABM3B-8.000MHZ-B2-T	Abracon晶振	ABM3B	MHz Crystal	8MHz
ABS07-32.768KHZ-T	Abracon晶振	ABS07	kHz Crystal (Tuning Fork)	32.768kHz
ABLS-3.579545MHZ-D-4-T	Abracon晶振	ABLS	MHz Crystal	3.579545MHz
ABM11-140-26.000MHZ-T3	Abracon晶振	ABM11	MHz Crystal	26MHz
ABM11-141-26.000MHZ-T3	Abracon晶振	ABM11	MHz Crystal	26MHz
ABM11-143-27.120MHZ-T3	Abracon晶振	ABM11	MHz Crystal	27.12MHz
ABM8-25.000MHZ-B2-T	Abracon晶振	ABM8	MHz Crystal	25MHz
ABLS3-8.000MHZ-D4Y-T	Abracon晶振	ABLS3	MHz Crystal	8MHz
ABLS3-16.000MHZ-D4Y-T	Abracon晶振	ABLS3	MHz Crystal	16MHz
ABLS3-3.6864MHZ-D4Y-T	Abracon晶振	ABLS3	MHz Crystal	3.6864MHz

小體積石英晶體廣泛用于測試設備ABM8-24.000MHZ-D2-T,3225mm貼片晶振在極端嚴酷的環境條件下也能發揮穩定的起振特性,晶振本身具有耐熱,耐振,耐沖擊等優良的耐環境特性,滿足無鉛焊接的高溫回流溫度曲線要求,符合AEC-Q200標準.
